Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

صورة كبيرة :  Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: VELP
إصدار الشهادات: SGS
رقم الموديل: 001
شروط الدفع والشحن:
الحد الأدنى لكمية: 50sqm
الأسعار: USD5-USD10/sqm
تفاصيل التغليف: حالة خشبية+أحزمة السلامة
وقت التسليم: 5-8 أيام العمل
شروط الدفع: T/T ، L/C ، Western Union
القدرة على العرض: 30000SQM في الشهر

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

وصف
اسم المنتج: شبكة كابل أسلاك الفولاذ المقاوم للصدأ للسور مادة: أسلاك الحبل من الفولاذ المقاوم للصدأ
شكل ثقب: شكل ثقب الماس الاستخدام: حماية شبكة السياج، شبكة سلكية مزخرفة، شبكة حديقة الحيوان.
عينة: متاحة ومجانية لورقة صغيرة الحجم، العديد من العينات في الأوراق المالية فتحة الشبكة: 20*20 مللي متر-300*300 مللي متر
سماكة: 1.2 مم، 1.6 مم، 2.0 مم، 2.4 مم، حسب الطلب مقاس: مخصص على أساس الطلب
إبراز:

Long Time Service Durable Stainless Steel Rope Mesh,UV Protection Wire Cable Mesh,Customizable Size SS Rope Mesh

,

UV Protection Wire Cable Mesh

,

Customizable Size SS Rope Mesh

Long Time Service Durable Stainless Steel Rope Mesh For Handrail Filling
Our high-quality stainless steel wire rope mesh (also called cable mesh) offers exceptional corrosion resistance and UV protection, making it ideal for harsh environments. Available in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps, this versatile solution is favored by architects worldwide.
  • The ferrule rope mesh consists of ferrules and rope, with ferrules being essential components that determine the size and longevity of the mesh
  • Ferrules are available in stainless steel and aluminum variants - for marine environments, we recommend 316 stainless steel ferrules for superior corrosion resistance
  • All mesh is handcrafted, whether woven type or ferrule type
Product Attributes
Attribute Value
Material Stainless Steel 304/316/304L/316L
Product Name SS stainless steel wire cable mesh
Hole Shape Diamond hole shape
Usage Protecting mesh, decorative wire mesh, etc.
Length Customized: 10m/roll, 30m/roll, 50m/roll
Width 0.1m-8m, customized size
Sample Available and free (by air, 30*30cm)
Mesh Aperture 20mm*20mm-300mm*300mm
Warranty 10 years warranty
Thickness 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm
Technical Specifications
Specification Details
Material Stainless steel 304 304L 316 316L
Rope Diameter 1/8" 3/32" 1/16" 3/64" and other diameters available
Rope Construction 7*7 and 7*19 (1*7 and 7*19 also available)
Mesh Apertures 1"*1" 1-1/2"*1-1/2" 2"*2" 3"*3" 4"*4"
Application Decorations, safety fence, animal enclosure, bird netting, railings
Connection Knotted or with ferrules
Product Applications
  • Building Facade screens
  • Green wall systems
  • Balustrade & Railing
  • Bird protection netting
  • Security platform fence
  • Isolate fence
  • Garden fence
  • Animal enclosures in zoo
Product Features
  • The mesh is clipped to the cable
  • The hole size and diameter can be modified
  • Can be made to customer orders and statically tested - especially suitable for facades
  • High strength, strong toughness, free-angles curving and fold, easy for transportation and installment
  • Anti-corrosive, resist the rust, can be repeated use
  • Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
  • Can bear heavy snow and strong winds
  • Without toxic material, safety, environmental protection
Key Advantages
  • Excellent flexible performance for versatile installations
  • Virtually indestructible construction
  • Superior impact resistance against rain, snow, and hurricanes
  • High strength with strong toughness, allowing free-angle curving and folding
  • Extended service life exceeding 30 years
Our Service
Our 20,000 sqm factory in Anping County, China features three specialized workshops for different product lines. We offer comprehensive support including:
  • Online Technical Support
  • Onsite Installation
  • Onsite Training
  • Onsite Inspection
  • Free Spare Parts
  • Return and Replacement
  • 3D model design
Packaging
Standard packaging includes wooden cases. Special packaging options are available upon request to meet specific shipping or handling requirements.
Product Images
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 0

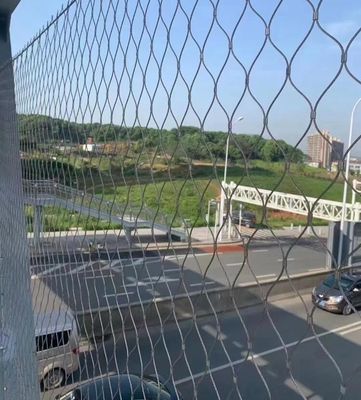

Stainless steel wire rope mesh product overview
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 1
Close-up view of stainless steel rope mesh structure
Balustrade Applications
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 2

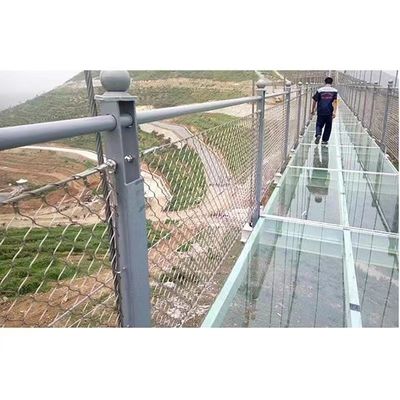

Stainless steel rope mesh used in balustrade application
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 3

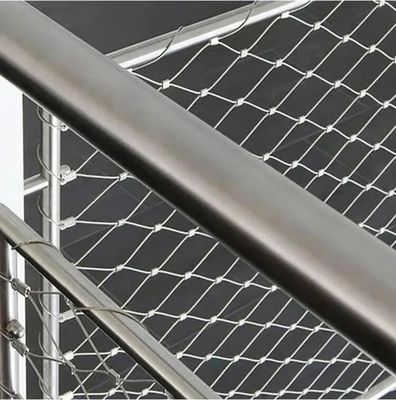

Architectural use of stainless steel rope mesh
Zoo Mesh Applications
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 4
Stainless steel rope mesh used in zoo enclosure
